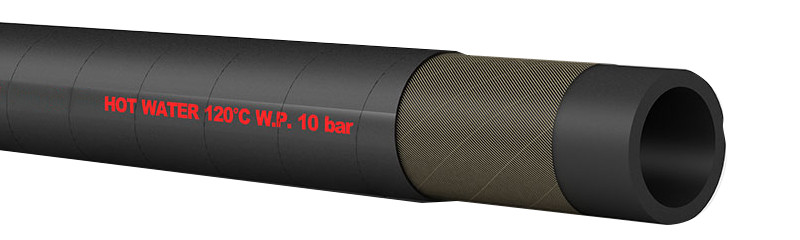

Hot Water Discharge Hose 120°C
softwall hot water discharge hose, for water that is even
slightly acidic, suitable also for non corrosive fluids in numerous applications in chemical industries.
Tube: black, smooth, EPDM rubber.
Reinforcement: high strength synthetic cord.
Cover: black, smooth, (wrapped finish) EPDM rubber, heat, weathering, and ozone resistant.
Temperature: from -40°C (-40°F) to +120°C (+248°F).
Inside Diameter | Outside Diameter | Working Pressure | Burst Pressure | Nominal Weight | |||||
Mm inch | Mm inch | Bar psi | Bar psi | kg/m lbs/ft | |||||
10 | 25/64 | 20 | 0,79 | 10 | 150 | 30 | 450 | 0,31 | 0,21 |
12 | 15/32 | 22 | 0,87 | 10 | 150 | 30 | 450 | 0,35 | 0,23 |
13 | 1/2 | 20 | 0,79 | 10 | 150 | 30 | 450 | 0,22 | 0,15 |
15 | 19/32 | 25 | 0,99 | 10 | 150 | 30 | 450 | 0,41 | 0,27 |
16 | 5/8 | 26 | 1,02 | 10 | 150 | 30 | 450 | 0,43 | 0,29 |
18 | 23/32 | 28 | 1,10 | 10 | 150 | 30 | 450 | 0,47 | 0,32 |
19 | 3/4 | 27 | 1,06 | 10 | 150 | 30 | 450 | 0,33 | 0,22 |
20 | 35/32 | 30 | 1,18 | 10 | 150 | 30 | 450 | 0,51 | 0,34 |
25 | 1 | 35 | 1,38 | 10 | 150 | 30 | 450 | 0,61 | 0,41 |
30 | 1-3/16 | 41,5 | 1,64 | 10 | 150 | 30 | 450 | 0,82 | 0,55 |
32 | 1-1/4 | 43,5 | 1,71 | 10 | 150 | 30 | 450 | 0,86 | 0,58 |
38 | 1-1/2 | 50 | 1,97 | 10 | 150 | 30 | 450 | 1,06 | 0,71 |
45 | 1-49/64 | 61 | 2,40 | 10 | 150 | 30 | 450 | 1,66 | 1,12 |
51 | 2 | 65,5 | 2,58 | 10 | 150 | 30 | 450 | 1,66 | 1,11 |
63,5 | 2-1/2 | 78,5 | 3,09 | 10 | 150 | 30 | 450 | 1,94 | 1,31 |
