Hydraulic Hose SAE 100R3/EN854

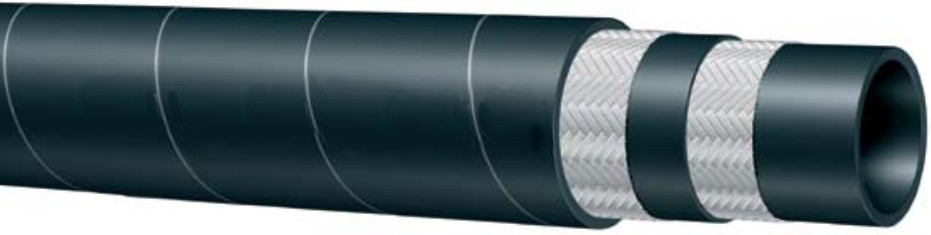

Hydraulic Hose SAE 100R3/EN854 is a kinds of Double Fiber Braid (nonmetallic ),Rubber Covered Hydraulic Hose
Tube: Oil Resistant synthetic rubber
Reinforcement: Two high tensile fiber braid (2T/B)
Cover: Abrasion and weather resistant synthetic rubber
Temperature Range: -40°Cto +100°C
DN | ID | OD | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | |||
inch | mm | mm | Mpa | PSI | Mpa | PSI | mm | kg/m | |
5 | 3/16 | 4.8 | 13.4 | 41.4 | 6000 | 165 | 23720 | 89 | 0.32 |
6 | 1/4 | 6.4 | 15.0 | 40.0 | 5800 | 160 | 22840 | 102 | 0.36 |
8 | 5/16 | 7.9 | 16.6 | 36.0 | 5250 | 140 | 20000 | 114 | 0.45 |
10 | 3/8 | 9.5 | 19.0 | 33.1 | 4800 | 132 | 18840 | 127 | 0.54 |
13 | 1/2 | 12.7 | 22.2 | 27.6 | 4000 | 110 | 15720 | 178 | 0.68 |
16 | 5/8 | 15.9 | 25.4 | 25.0 | 3630 | 100 | 14280 | 203 | 0.8 |
19 | 3/4 | 19.0 | 29.3 | 21.5 | 3120 | 85 | 12280 | 241 | 0.94 |
25 | 1 | 25.4 | 38.0 | 16.5 | 2400 | 65 | 9420 | 305 | 1.35 |
32 | 1 1/4 | 31.8 | 48.3 | 12.5 | 1820 | 50 | 7140 | 419 | 2.15 |
38 | 1 1/2 | 38.1 | 54.6 | 9.0 | 1310 | 36 | 5140 | 508 | 2.65 |
51 | 2 | 50.8 | 67.3 | 8.0 | 1160 | 32 | 4560 | 635 | 3.42 |
