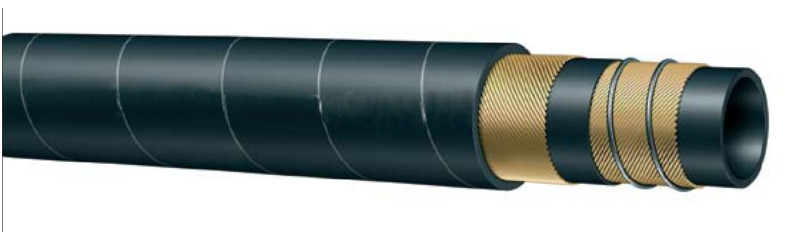

Hydraulic Hose SAE 100R5
Hydraulic Hose SAE 100R5 Recommended for: Medium pressure hydraulic oil lines, other air, water and oil serivce
Tube: Black, oil and heat resistant synthetic rubber.
Reinforcement: Textile inner braid and a braid of higher tensile steel wire
Cover: Black, oil, abrasion and weather resistant synthetic rubber (wrapped impression).
Temperature Range: -40 ℃ to +100℃
I.D. | O.D. | MAX WP | BEND RADIUS | ||||
in. | mm. | in. | mm. | psi | Mpa | in. | mm. |
3/16 | 5 | 0.51 | 13 | 3000 | 21 | 3 | 75 |
1/4 | 6.4 | 0.58 | 14.7 | 3000 | 21 | 3.4 | 85 |
5/16 | 8 | 0.67 | 17 | 2250 | 15.5 | 4 | 100 |
13/32 | 10.5 | 0.76 | 19.2 | 2000 | 14 | 4.6 | 115 |
1/2 | 12.9 | 0.91 | 23.1 | 1750 | 12 | 5.6 | 140 |
5/8 | 16 | 1.06 | 27 | 1500 | 10.5 | 6.6 | 165 |
7/8 | 22.2 | 1.22 | 31 | 800 | 5.5 | 7.4 | 185 |
1 1/8 | 28.6 | 1.49 | 37.8 | 650 | 4.5 | 9.2 | 230 |
1 3/8 | 35 | 1.74 | 44.2 | 500 | 3.5 | 10.6 | 265 |
1 13/16 | 46.2 | 2.2 | 55.9 | 363 | 2.5 | 13.4 | 335 |
2 3/8 | 60.3 | 2.87 | 73 | 348 | 2.4 | 24.4 | 610 |
