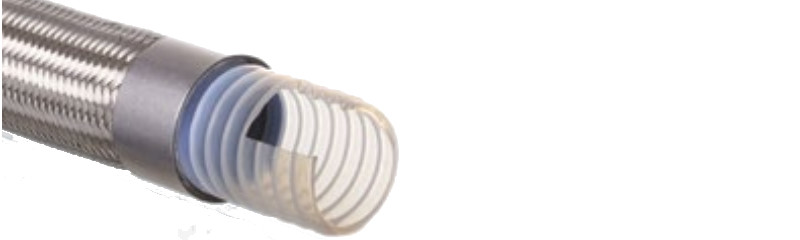

C-Flex Corrugated Bore Teflon Hose
Construction
Inner: Corrugated PTFE
Cover:SS Wire Braided
Temperature Range: -100F(-73°C) to 500°F(260°C)
ID(inch) | OD(inch) | Working Pressure(PSI) | Burst Pressure(PSI) | Minimum Bend Radius(inch) | Weight(lbs/ft) |
0.37 | 0.56 | 1850 | 7400 | 2.0 | 0.23 |
0.50 | 0.75 | 1500 | 6000 | 3.0 | 0.27 |
0.75 | 1.01 | 1300 | 5200 | 3.5 | 0.43 |
1.00 | 1.30 | 1000 | 4000 | 4.0 | 0.63 |
1.25 | 1.57 | 900 | 3600 | 4.5 | 0.75 |
1.50 | 1.89 | 700 | 2800 | 4.5 | 0.88 |
2.00 | 2.38 | 500 | 2000 | 5.0 | 1.11 |
