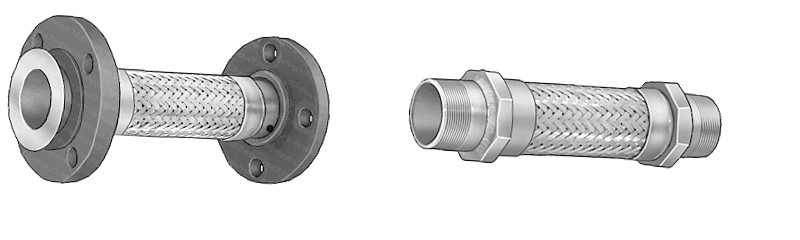

Flexible Pump Connector
Specifications
Stainless Steel Hose
Single Stainless Braid
Male NPT Schedule 40 Carbon Steel Fittings
Options
Bronze Hose & Braid
Stainless Steel Fittings
Schedule 80 Fittings
Hex Nut Fittings
Double Braided For Higher Pressure
I.D (in.) | Overall Length | Max. W.P. At Room Temp. (psi) | Approx. Wt. (lbs.) Per Unit |
1/2 | 6-1/2" | 950 | 1/2 |
3/4 | 7" | 700 | 1 |
1 | 8" | 550 | 1 |
1-1/4 | 8-1/2" | 420 | 1-1/2 |
1-1/2 | 9" | 380 | 2 |
2 | 10-1/2" | 300 | 2-1/2 |
2-1/2 | 12" | 300 | 2-1/2 |
3 | 14" | 250 | 4 |
4 | 16" | 200 | 4-1/2 |
