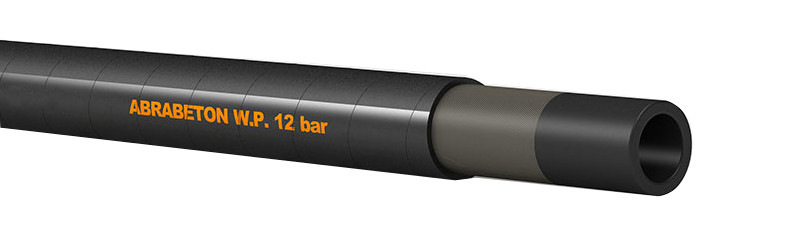

Sandblast Hose 12bar
Sandblast Hose 12bar is a kinds of Antistatic rubber hose for sand blasting, highly abrasion resistant.
Tube: black, smooth, antistatic SBR/NR rubber, with special abrasion resistance that ensures a long service life.
Reinforcement: high strength synthetic cord.
Cover: black, smooth, (wrapped finish) antistatic synthetic rubber, abrasion resistant.
Temperature: from -40°C (-40°F) to +80°C (+176°F).
Inside Diameter | Outside Diameter | Working Pressure | Burst Pressure | Nominal Weight | |||||
Mm inch | Mm inch | Bar psi | Bar psi | kg/m lbs/ft | |||||
13 | 1/2 | 27 | 1,06 | 12 | 180 | 42 | 630 | 0,49 | 0,33 |
16 | 5/8 | 30 | 1,18 | 12 | 180 | 42 | 630 | 0,56 | 0,38 |
19 | 3/4 | 33 | 1,30 | 12 | 180 | 42 | 630 | 0,64 | 0,43 |
25 | 1 | 39 | 1,54 | 12 | 180 | 42 | 630 | 0,78 | 0,52 |
32 | 1-1/4 | 48 | 1,89 | 12 | 180 | 42 | 630 | 1,11 | 0,75 |
32 | 1-1/4 | 50 | 1,97 | 12 | 180 | 42 | 630 | 1,32 | 0,88 |
38 | 1-1/2 | 56,5 | 2,23 | 12 | 180 | 42 | 630 | 1,50 | 1,01 |
42 | 1-24/32 | 60,5 | 2,38 | 12 | 180 | 42 | 630 | 1,61 | 1,08 |
60 | 2-3/8 | 80 | 3,15 | 12 | 180 | 42 | 630 | 2,37 | 1,59 |
