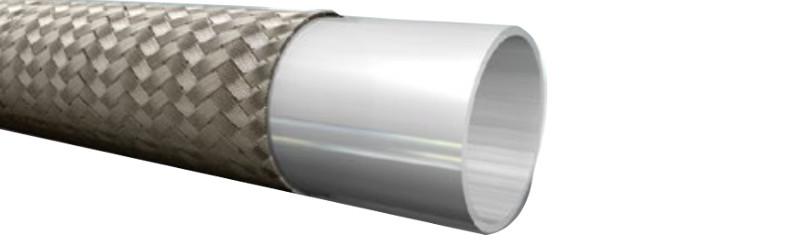

SM-Flex Smoothbore Teflon Hose
Construction
Inner: Smooth bore PTFE
Cover:SS Wire Braided
Temperature Range: -100F(-73°C) to 500°F(260°C)
ID(inch) | OD(inch) | Working Pressure(PSI) | Burst Pressure(PSI) | Minimum Bend Radius(inch) | Weight(lbs/ft) |
3/16 | 0.23 | 3000 | 12000 | 2.0 | 0.05 |
1/4 | 0.30 | 3000 | 12000 | 2.0 | 0.06 |
5/16 | 0.37 | 3000 | 12000 | 2.3 | 0.07 |
5/16 | 0.45 | 4350 | 17400 | 2.5 | 0.10 |
3/8 | 0.40 | 2500 | 10000 | 3.9 | 0.09 |
3/8 | 0.50 | 2250 | 9000 | 4.5 | 0.10 |
1/2 | 0.52 | 2000 | 8000 | 4.7 | 0.12 |
5/8 | 0.59 | 1750 | 7000 | 5.3 | 0.15 |
3/4 | 0.80 | 1500 | 6000 | 6.5 | 0.23 |
3/4 | 0.89 | 1100 | 4400 | 7.4 | 0.23 |
1 | 1.05 | 1000 | 4000 | 7.8 | 0.28 |
1 | 1.03 | 1250 | 5000 | 9.0 | 0.48 |
1 | 1.18 | 900 | 3600 | 9.8 | 0.34 |
1 1/4 | 1.38 | 1000 | 4000 | 11.0 | 0.59 |
