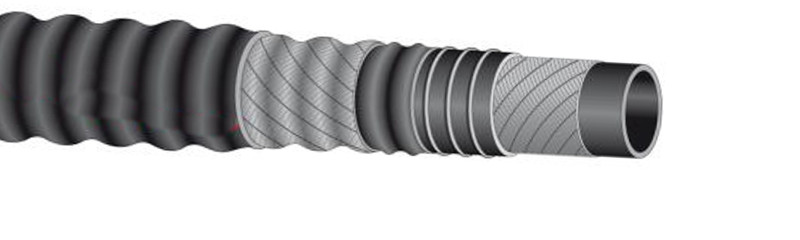

Truck Oil Hose Corrugated Cover
Truck Oil Hose Corrugated Cover is a kinds of Flexible hose with corrugated cover, for suction and delivery of liquid organic materials with oil traces and chemical residues.
Tube: black, smooth, synthetic rubber.
Reinforcement: high strength synthetic cord and helix wire.
Cover: black, corrugated (wrapped finish), antistatic synthetic rubber, weathering and abrasion resistant.
Temperature: from -20°C (-4°F) to +70°C (+158°F).
Inside Diameter | Working Pressure | Burst Pressure | Nominal Weight | Bending Radius | Vacuum | |||||
Mm inch | Bar psi | Bar psi | kg/m lbs/ft | Mm inch | bar | |||||
76 | 3 | 3 | 45 | 9 | 135 | 2,38 | 1,60 | 300 | 11,8 | 0,9 |
80 | 3-1/4 | 3 | 45 | 9 | 135 | 2,50 | 1,68 | 320 | 12,6 | 0,9 |
102 | 4 | 3 | 45 | 9 | 135 | 3,81 | 2,56 | 410 | 16,2 | 0,9 |
110 | 4-21/64 | 3 | 45 | 9 | 135 | 4,39 | 2,95 | 440 | 17,3 | 0,9 |
120 | 4-47/64 | 3 | 45 | 9 | 135 | 4,79 | 3,22 | 480 | 18,9 | 0,9 |
125 | 4-59/64 | 3 | 45 | 9 | 135 | 4,98 | 3,35 | 500 | 19,7 | 0,9 |
152 | 6 | 3 | 45 | 9 | 135 | 7,54 | 5,07 | 610 | 24,0 | 0,9 |
203 | 8 | 3 | 45 | 9 | 135 | 10,43 | 7,01 | 0815 | 32,1 | 0,9 |
