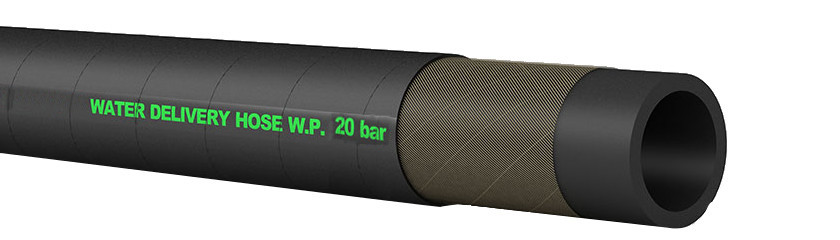

Water Delivery Hose 20bar
hardwall hose for suction and discharge of water and non corrosive liquids, suitable to be rolled up on mono-spiral hose reels.
Tube: black, smooth, synthetic rubber.
Reinforcement: high strength synthetic cord.
Cover: black, smooth (wrapped finish), synthetic rubber, weathering and ozone resistant.
Temperature: from -30°C (-22°F) to +70°C (+158°F).
Inside Diameter | Outside Diameter | Working Pressure | Burst Pressure | Nominal Weight | |||||
Mm inch | Mm inch | Bar psi | Bar psi | kg/m lbs/ft | |||||
13 | 1/2 | 19,5 | 0,77 | 20 | 300 | 60 | 900 | 0,22 | 0,15 |
19 | 3/4 | 29 | 1,14 | 20 | 300 | 60 | 900 | 0,48 | 0,32 |
25 | 1 | 35 | 1,38 | 20 | 300 | 60 | 900 | 0,61 | 0,41 |
32 | 1-1/4 | 44 | 1,73 | 20 | 300 | 60 | 900 | 0,93 | 0,63 |
38 | 1-1/2 | 50 | 1,97 | 20 | 300 | 60 | 900 | 1,08 | 0,73 |
51 | 2 | 65 | 2,56 | 20 | 300 | 60 | 900 | 1,59 | 1,07 |
63,5 | 2-1/2 | 80 | 3,15 | 20 | 300 | 60 | 900 | 2,44 | 1,64 |
76 | 3 | 90 | 3,55 | 20 | 300 | 60 | 900 | 2,35 | 1,58 |
90 | 3-35/64 | 112 | 4,41 | 20 | 300 | 60 | 900 | 4,55 | 3,06 |
102 | 4 | 120 | 4,73 | 20 | 300 | 60 | 900 | 3,92 | 2,63 |
203 | 8 | 223 | 8,79 | 20 | 300 | 60 | 900 | 7,97 | 5,36 |
