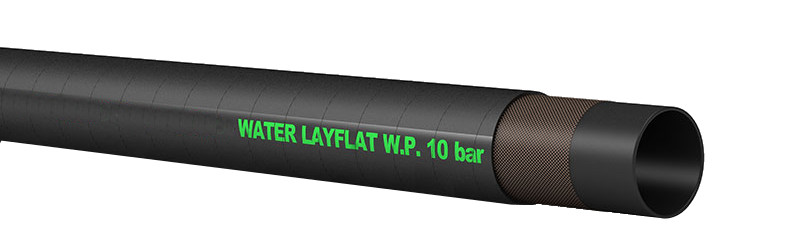

Water Layflat Hose 10bar
lightweight and lay flat softwall hose, used for the discharge of industrial or waste waters in submerged pumps and in mobile irrigation systems.
Tube: black, smooth, synthetic rubber.
Reinforcement: high strength synthetic cord.
Cover: black, smooth (wrapped finish), synthetic rubber, weathering and ozone resistant.
Temperature: from -30°C (-22°F) to +70°C (+158°F).
Inside Diameter | Outside Diameter | Working Pressure | Burst Pressure | Nominal Weight | |||||
Mm inch | Mm inch | Bar psi | Bar psi | kg/m lbs/ft | |||||
30 | 1-3/19 | 36,5 | 1,44 | 10 | 150 | 30 | 450 | 0,42 | 0,28 |
40 | 1-37/64 | 46 | 1,81 | 10 | 150 | 30 | 450 | 0,50 | 0,34 |
45 | 1-49/64 | 51 | 2,01 | 10 | 150 | 30 | 450 | 0,56 | 0,38 |
51 | 2 | 57 | 2,25 | 10 | 150 | 30 | 450 | 0,63 | 0,42 |
60 | 2-3/8 | 66 | 2,60 | 10 | 150 | 30 | 450 | 0,74 | 0,50 |
76 | 3 | 82 | 3,23 | 10 | 150 | 30 | 450 | 0,93 | 0,63 |
80 | 3-5/32 | 87 | 3,43 | 10 | 150 | 30 | 450 | 1,07 | 0,72 |
102 | 4 | 109 | 4,29 | 10 | 150 | 30 | 450 | 1,31 | 0,88 |
127 | 5 | 135 | 5,32 | 10 | 150 | 30 | 450 | 1,91 | 1,28 |
152 | 6 | 159 | 6,26 | 10 | 150 | 30 | 450 | 2,04 | 1,37 |
203 | 8 | 213 | 8,39 | 10 | 150 | 30 | 450 | 3,66 | 2,46 |
254 | 10 | 265,5 | 10,46 | 10 | 150 | 30 | 450 | 5,15 | 3,46 |
