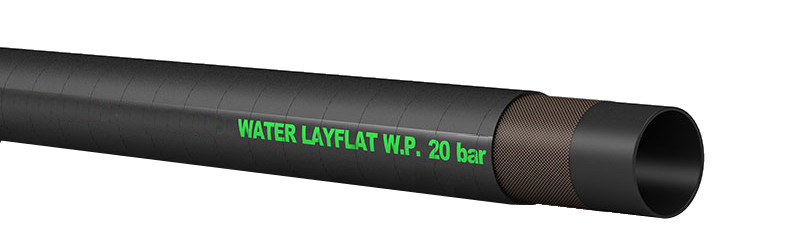

Water Layflat Hose 20bar
lightweight and lay flat softwall hose, used for the discharge of industrial or waste waters in submerged pumps and in mobile irrigation systems.
Tube: black, smooth, synthetic rubber.
Reinforcement: high strength synthetic cord.
Cover: black, smooth (wrapped finish), synthetic rubber, weathering and ozone resistant.
Temperature: from -30°C (-22°F) to +70°C (+158°F).
Inside Diameter | Outside Diameter | Working Pressure | Burst Pressure | Nominal Weight | |||||
Mm inch | Mm inch | Bar psi | Bar psi | kg/m lbs/ft | |||||
51 | 2 | 58 | 2,29 | 20 | 300 | 60 | 900 | 0,68 | 0,45 |
80 | 3-5/32 | 90 | 3,55 | 20 | 300 | 60 | 900 | 1,49 | 1,00 |
90 | 3-35/64 | 100 | 3,94 | 20 | 300 | 60 | 900 | 1,66 | 1,12 |
100 | 3-15/16 | 112 | 4,41 | 20 | 300 | 60 | 900 | 2,26 | 1,52 |
102 | 4 | 114 | 4,49 | 20 | 300 | 60 | 900 | 2,29 | 1,54 |
120 | 4-23/32 | 132 | 5,20 | 20 | 300 | 60 | 900 | 2,69 | 1,80 |
152 | 6 | 166 | 6,54 | 20 | 300 | 60 | 900 | 3,89 | 2,61 |
